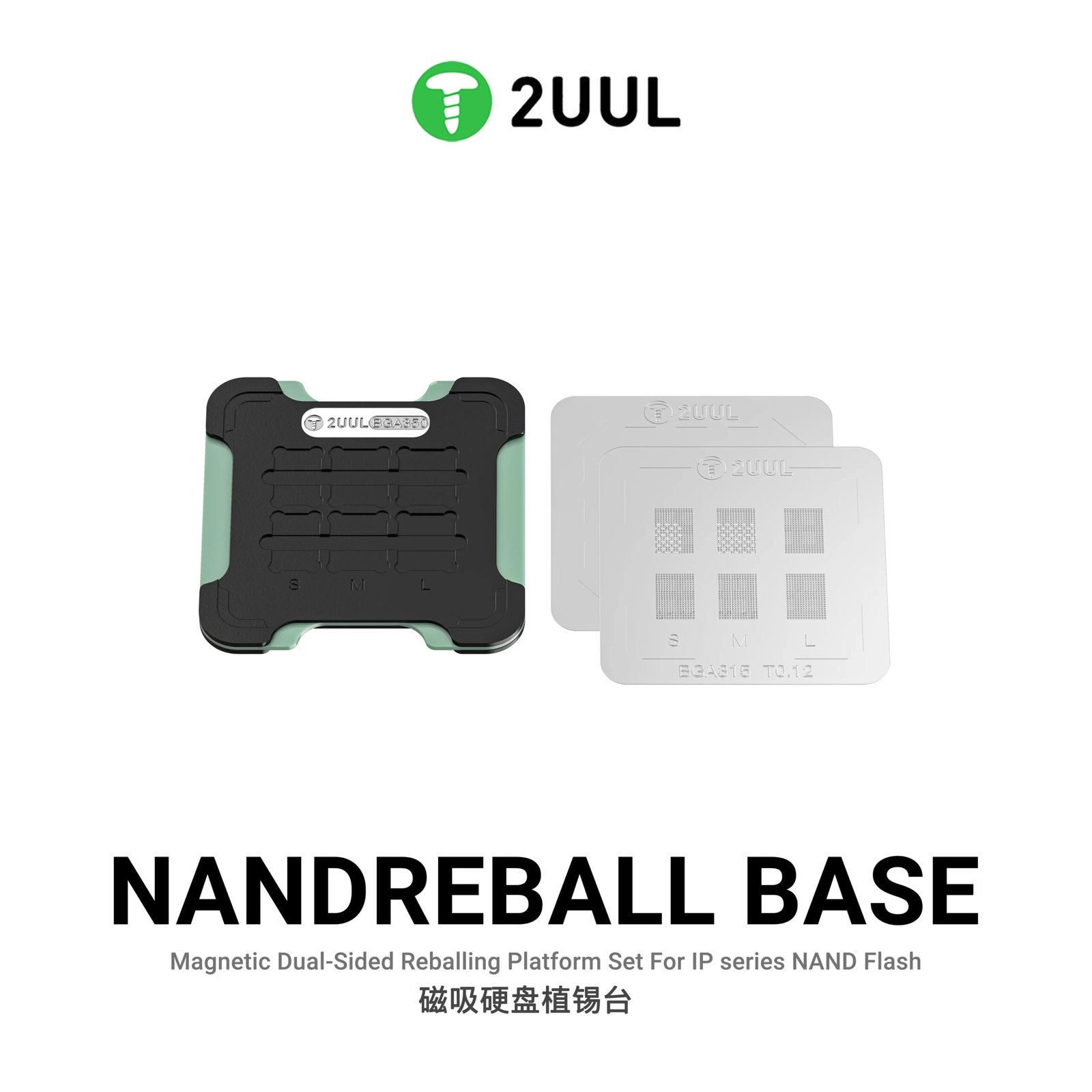

2UUL BH16 NAND Reball Base – Magnetic Dual-Sided High-Precision Reballing Platform

Precision Engineering for iPhone Memory Upgrades & Repairs

NAND reballing requires absolute stability to ensure every microscopic solder ball is uniform. The 2UUL BH16 simplifies the most difficult part of the process—stencil alignment—using a high-strength magnetic base that locks your stencil in place instantly.

Key Features:

• Dual-Sided Versatility: The BH16 is designed with a “flip” architecture, offering specific positioning slots on both sides to cover almost the entire iPhone lineup (from iPhone 6G up to the latest iPhone 16 series).

• Powerful Magnetic Absorption: Equipped with industrial-strength magnets that provide a flat, secure surface for reballing stencils. This prevents “stencil warping” caused by heat, ensuring a consistent $0.12\text{mm}$ solder paste thickness.

• High-Temperature Stability: Constructed from specialized synthetic stone and premium alloys that can withstand the high heat required for lead-free solder reflow without deforming or losing magnetic strength.

• Precision Positioning Slots: The CNC-machined slots are tailored to the exact dimensions of iPhone NAND ICs, ensuring the chip does not shift or vibrate during the scraping or heating phase.

• Efficient Heat Dissipation: The base material is designed to manage thermal energy efficiently, allowing for a fast reflow and quick cooling cycle to protect the integrity of the memory chip.

• Compact & Ergonomic: The slim, weighted profile fits perfectly under a microscope, giving you a stable platform that doesn’t slide across your heat mat.

Technical Specifications:

• Brand: 2UUL

• Model: BH16 (NAND Reball Base)

• Compatibility: iPhone 6/6P/6S/6SP/7/7P/8/8P/X/XS/XR/XS Max/11/12/13/14/15/16 Series.

• Material: Magnetic Alloy + Synthetic Heat-Resistant Stone.

• Function: NAND Flash IC Reballing / Positioning.

• Type: Magnetic Dual-Sided Platform.
